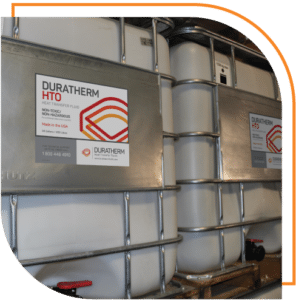

Engineered for precise and efficient temperature control up to 316°C (600°F), our HTO thermal fluid is a budget-wise solution for any heat transfer applications that need an environmentally friendly, low cost fluid capable of meeting today’s fast-paced production demands.
| Temerature Ratings | |
|---|---|
| Maximum Bulk/Use Temp | 316°C |
| Maximum Film Temp | 333°C |
| Pour Point ASTM D445 | -15°C |
| Safety Data | |
|---|---|
| Flash Point ASTM D92 | 219°C |
| Fire Point ASTM D92 | 232°C |
| Auto Ignition ASTM E-659-78 | 360°C |
| Thermal Properties | |
|---|---|
| Thermal Expansion Coefficient | 0.182 %/°C |
| Thermal Conductivity | W/m·K |
| 38°C | 0.137 |
| 260°C | 0.125 |
| 288°C | 0.123 |
| 316°C | 0.121 |
| Heat Capacity | kJ/kg·K |
| 38°C | 1.892 |
| 260°C | 2.587 |
| 288°C | 2.675 |
| 316°C | 2.759 |
| Physical Properties | |
|---|---|
| Viscosity ASTM D445 | cSt |
| 40°C | 39.41 |
| 260°C | 0.99 |
| 288°C | 0.84 |
| 316°C | 0.74 |
| Density ASTM D1298 | d/ml |
| 38°C | 0.811 |
| 260°C | 0.667 |
| 288°C | 0.649 |
| 316°C | 0.632 |
| Vapour Pressure ASTM D2879 | kPa |
| 38°C | 0 |
| 260°C | 2.344 |
| 288°C | 4.964 |
| 316°C | 9.653 |
| Distillation Range ASTM D2887 | |
| 10% | 372°C |
| 90% | 456°C |
| Average Molecular Weight | 371 |
Note: The values quoted in the table above are typical of normal production.
They do not constitute a specification.
